2604 Tractor
2604 Tractor
Regular price
$99,999,999.00
Regular price
Sale price
$99,999,999.00
Quantity
| Model | Specifications |
| Model Name | 2604 Wheel Tractor |
| Driving Mode | Two-wheel drive and four-wheel drive |
| Engine Model | Shangchai SC7H260G3 |
| Rated Power（KW） | 192KW |

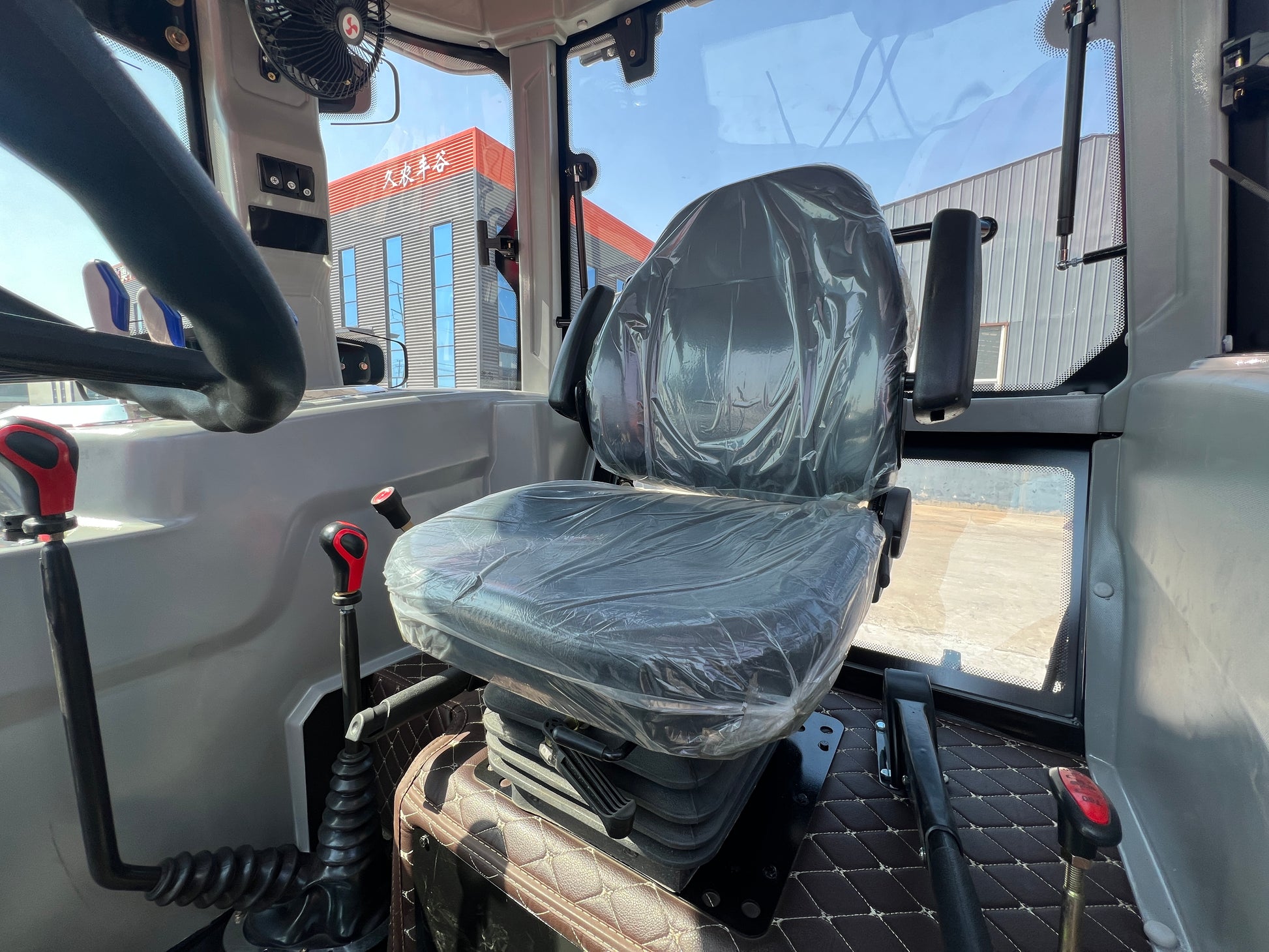

| Operator Platform | Deluxe Cab |
| Rear Axle | Shilihe TS16+16/32+32 Creeper Gears |
| Front Axle | Guhe Heavy-Duty Front Axle |
| Front Track Width（mm） | 1910-2450（mm) |
| Engine Speed(r/min) | 2200r/min |
| Steering System | Hydraulic Power |
| Steering control | Steering Wheel |

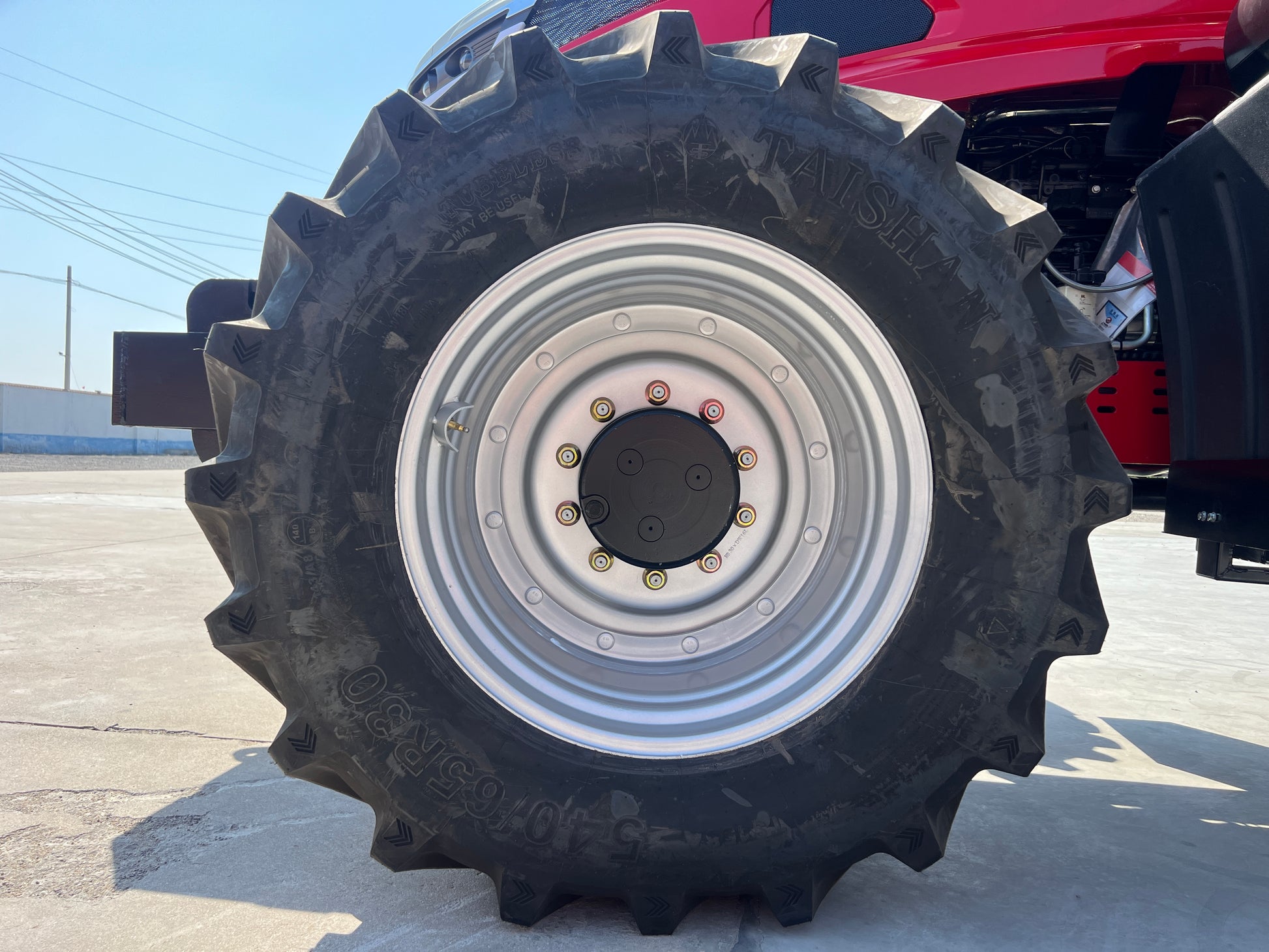

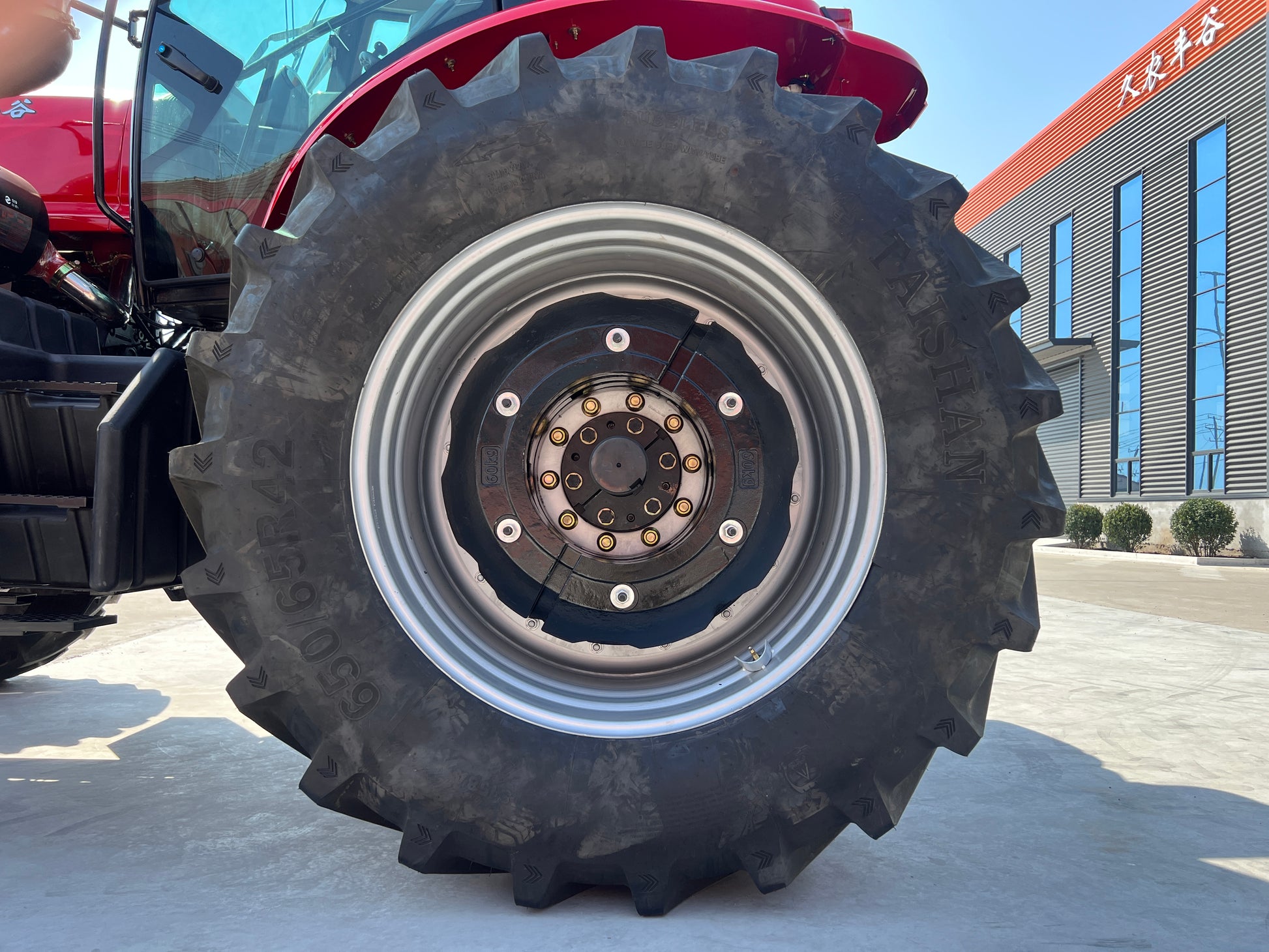

| Tire Specifications | Taishan Brand Radial Tires: Front 540/65R30 ,Rear 650/65R42 Optional: Dual Rear Wheels |

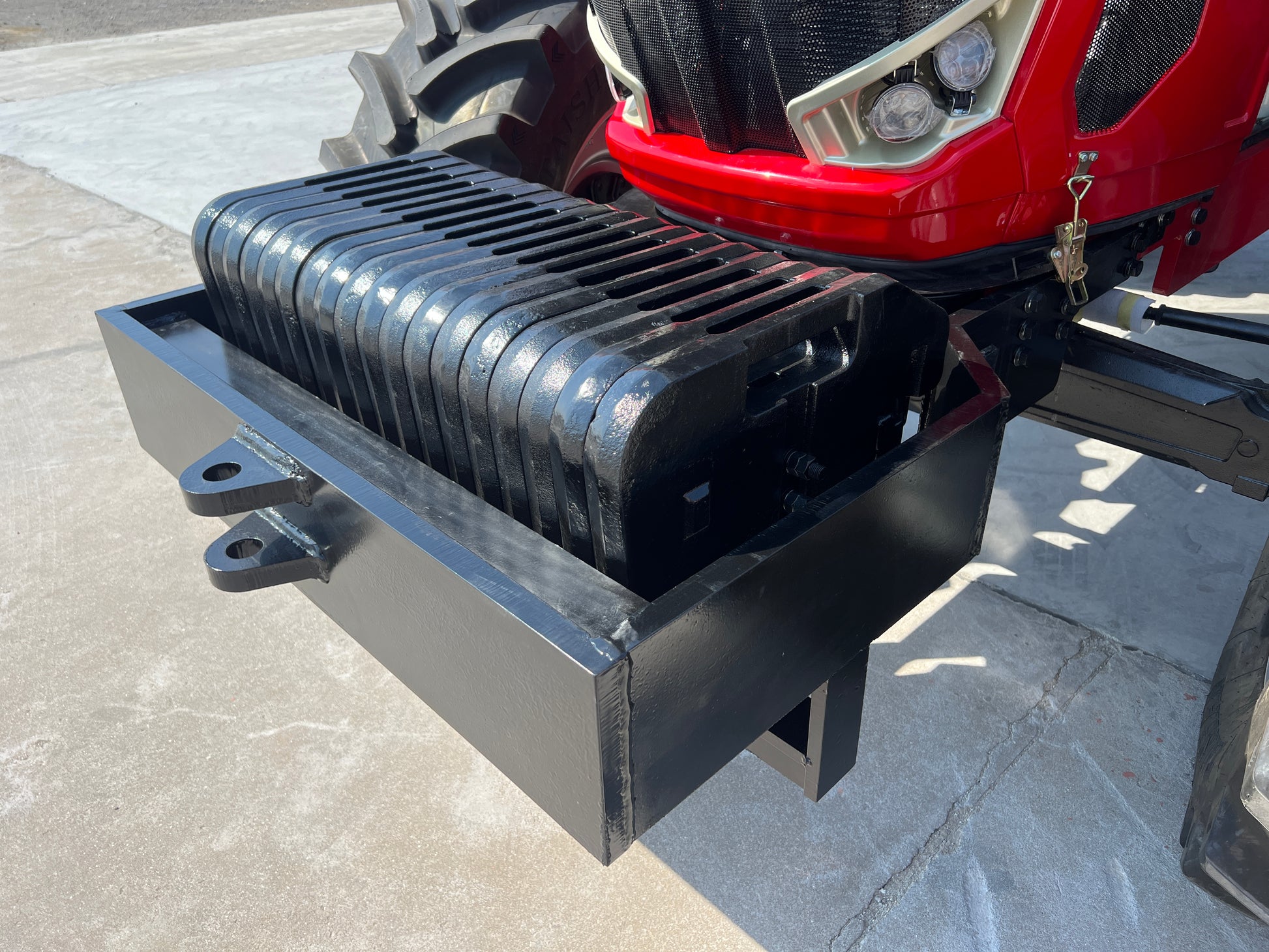

| Ballast Weight | 15*74 kg Front Plates/4*60kg Rear Plates |

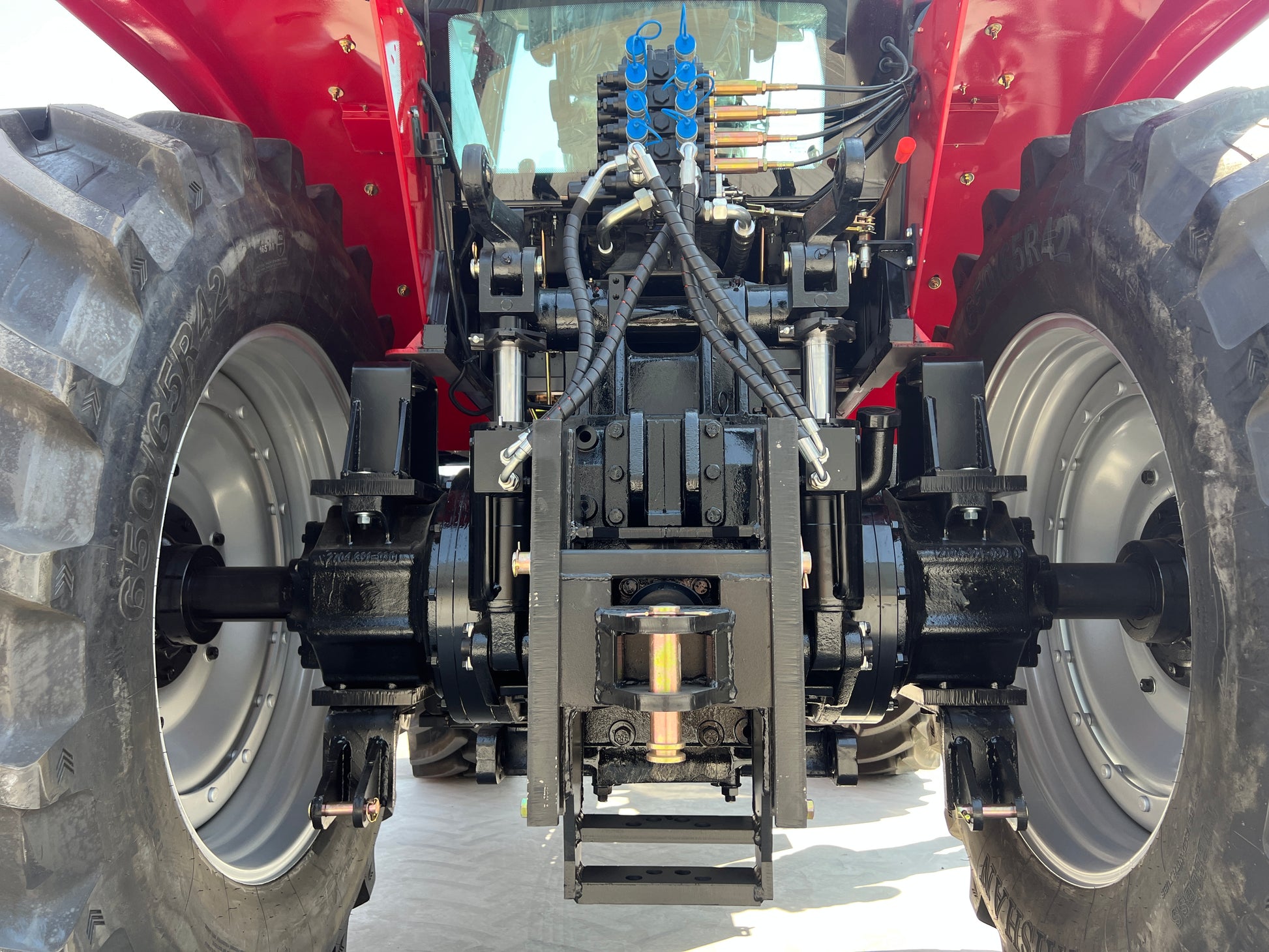

| Hitch | Rear 3-Point Hitch |
| Hydraulic Outlets | 480 Distributor |
| Hydraulic Pressure (Mpa) | 18-20Mpa |
| Rear PTO Shaft | 8-Spline |
| Reay PTO Speed( rpm) | 760/850 rpm |
| Battery | Tianneng 12V |
| Cluth | Yituo Zhongcheng 15'' Dual-Clutch |
| Max Design Speed(km/h) | 40km/h |
| Min.Grand Clearance(mm) | 470mm |
| Overall Dimensions(L*W*H)（mm） | 5200*2800*3260(L*W*H) |
| Operating Weight(KG) | 8300KG |
The model 2604 represents: 260 horsepower，4-wheel drive
The equipment's horsepower can be customized to meet specific requirements, with a range of 20–300 PS.
