Type-3000 flat-mouth self-loading mixer truck
Type-3000 flat-mouth self-loading mixer truck
Regular price
$99,999.00
Regular price
Sale price
$99,999.00
Quantity
| model | 参数 specifications |
| Overall dimensions (mm) | 升臂 Lifting arm: 5950×2400×3350； 落臂 Drop arm: 7100×2400×2800 |
| Wheel Base (mm) | 2900 |
| Total weight(kg) | 6500 |
| Drive model | 轮式四驱 Four-wheeled drive |

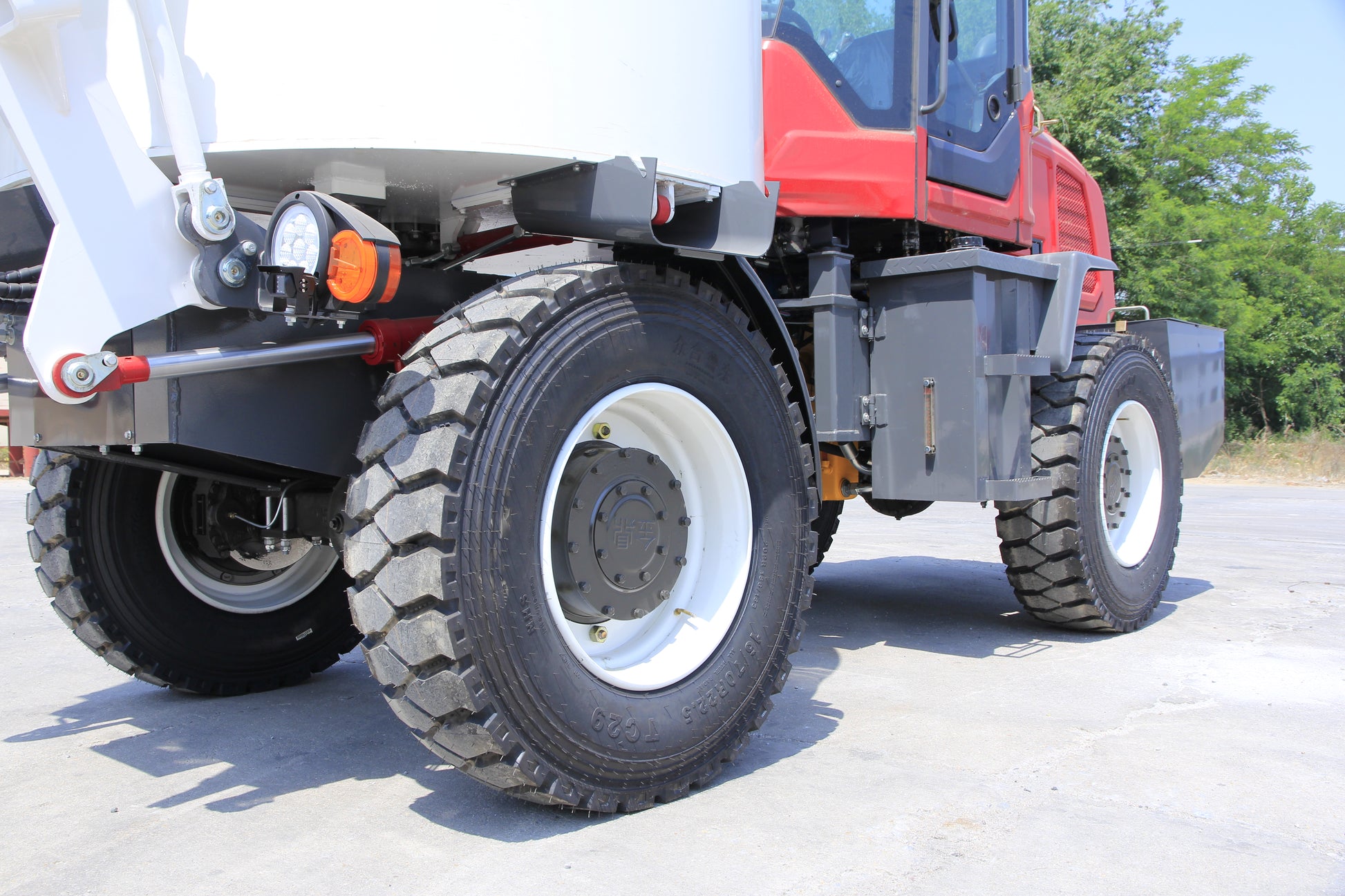

| Tyre | 16/70- R22.5 |

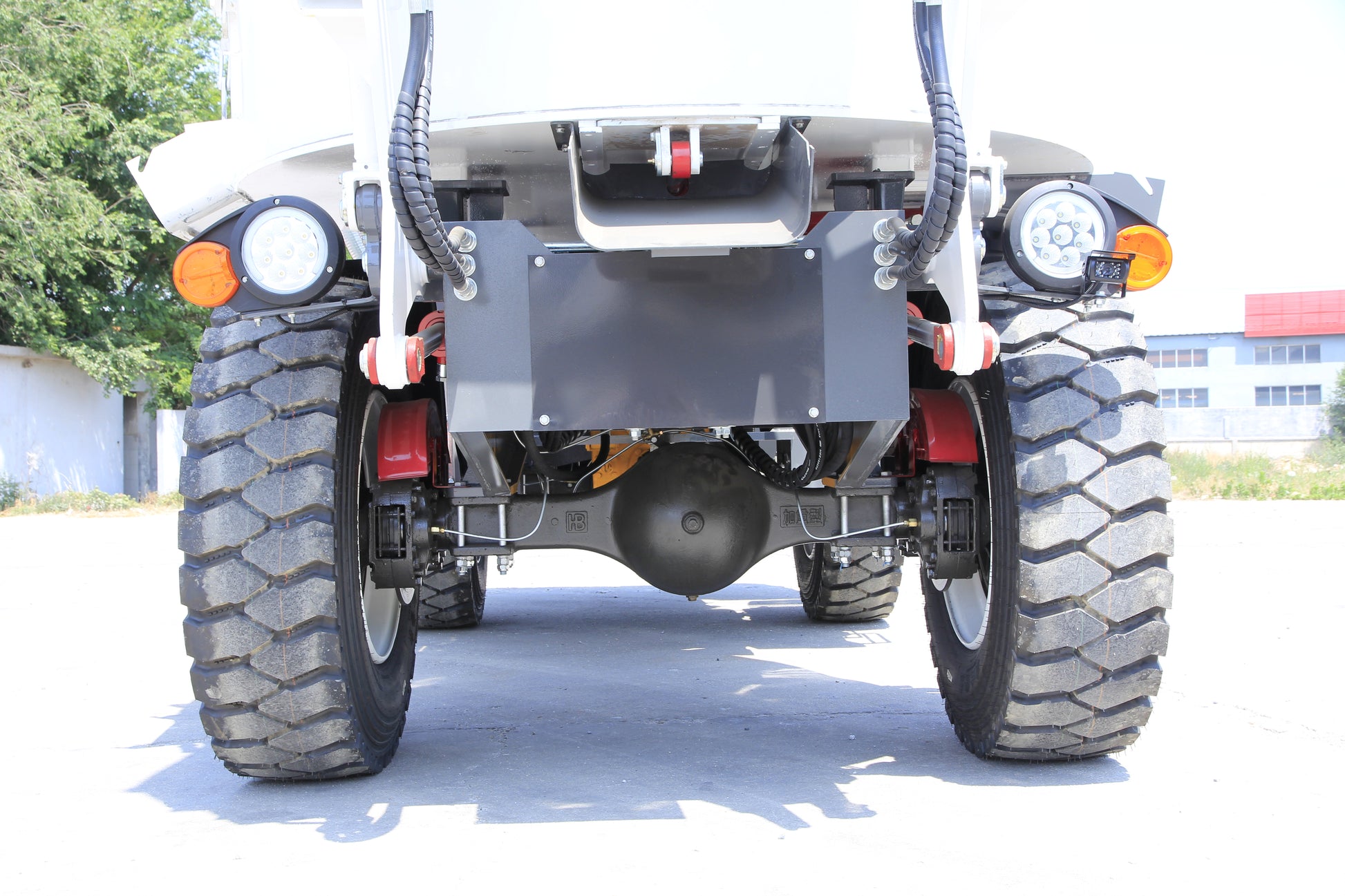

| Drive axle | 2.0T 轮边减速桥 - 前轮双钳 - 后轮双钳 2.0T wheel side axle,Front wheel double pliers,Rear wheel double pliers |

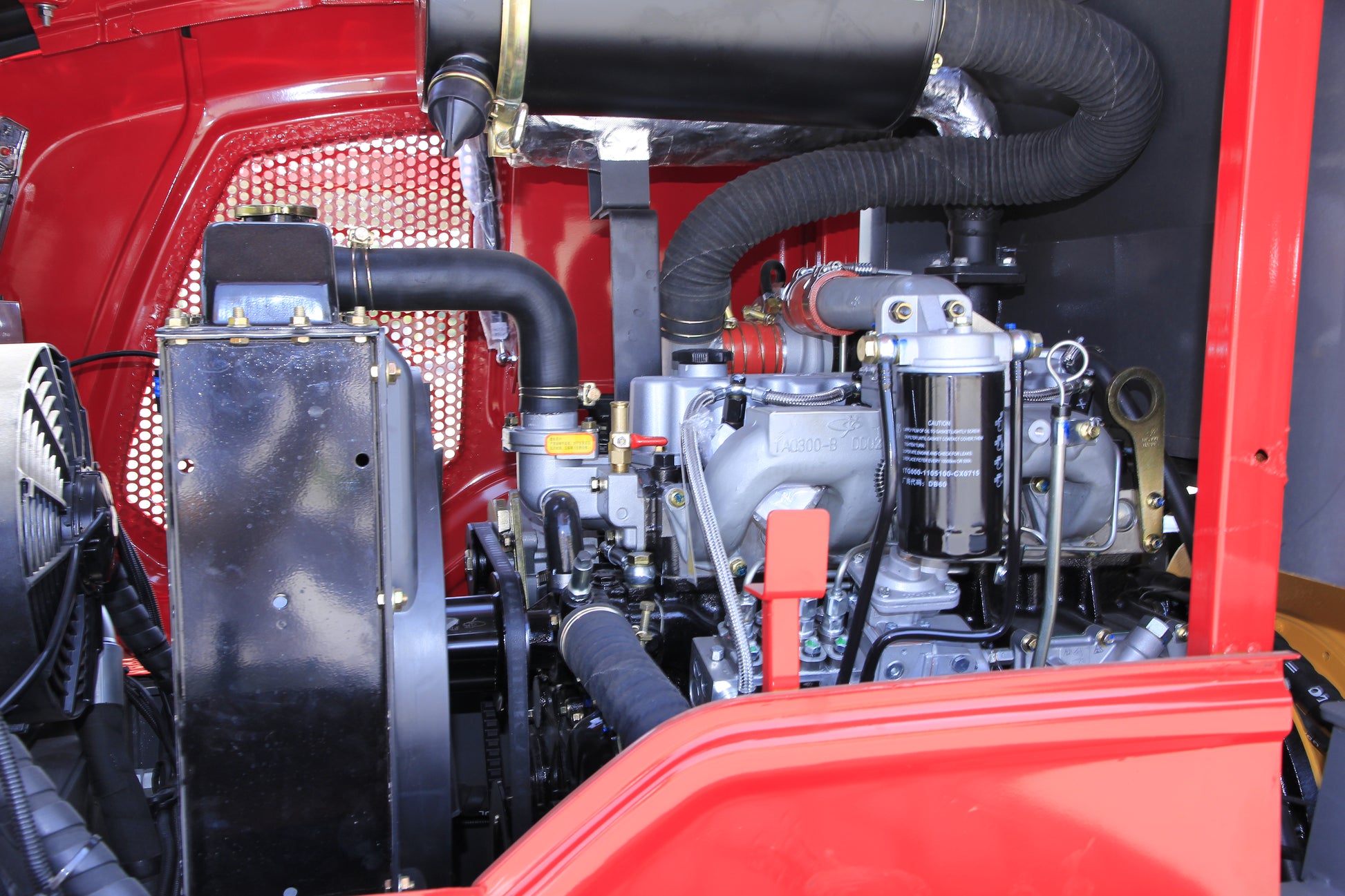

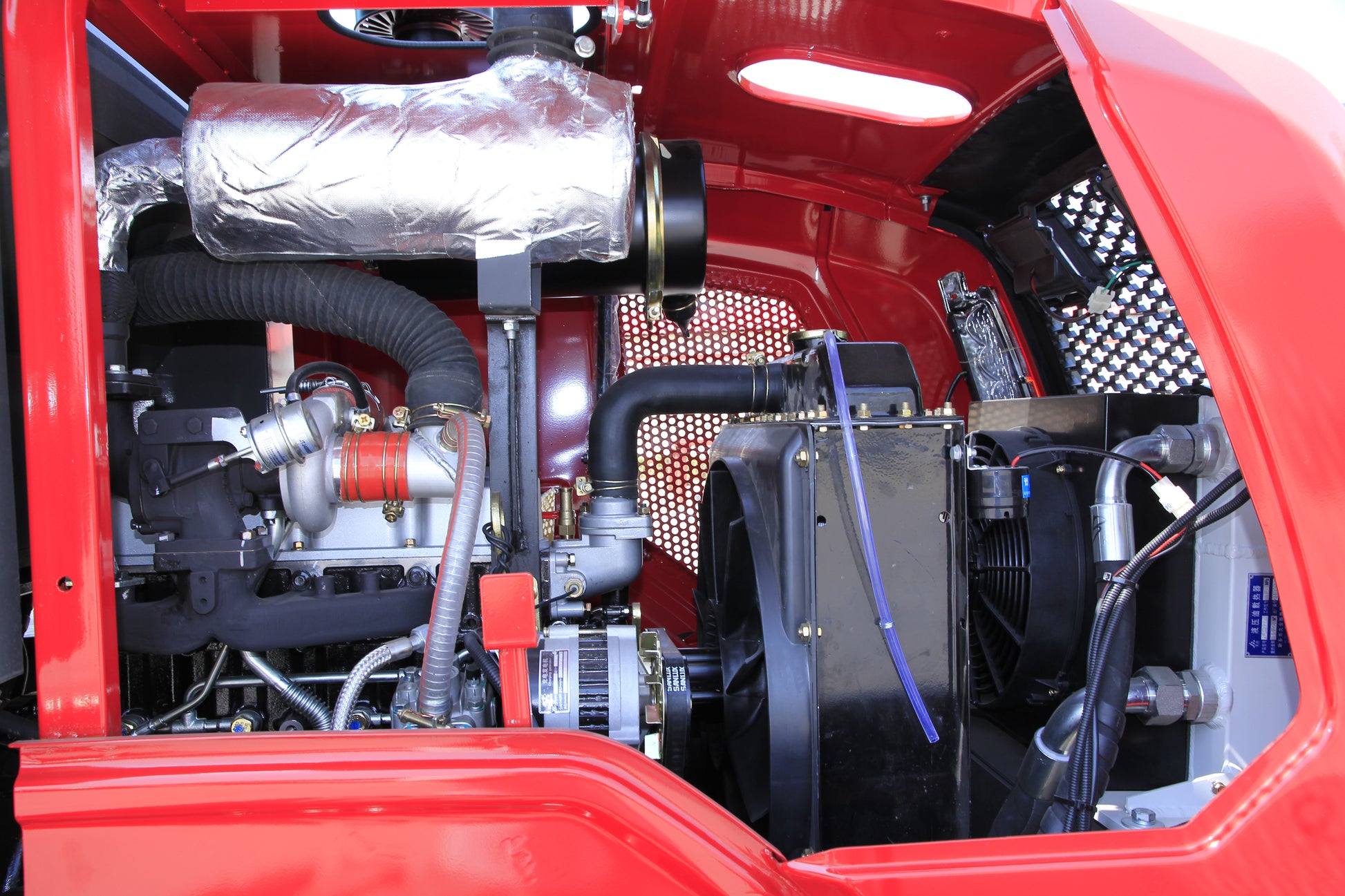

| Engine Model | 玉柴 4105 增压 YUCHAI 4105 turbo charger |
| Engine power (kw) | 85 |
| Gearbox Mode | 280 |
| Maximum speed (km/h) | 30 |
| Maximum climbing slope (°) | 30 |
| Minimum turning radius (mm) | 5800 |

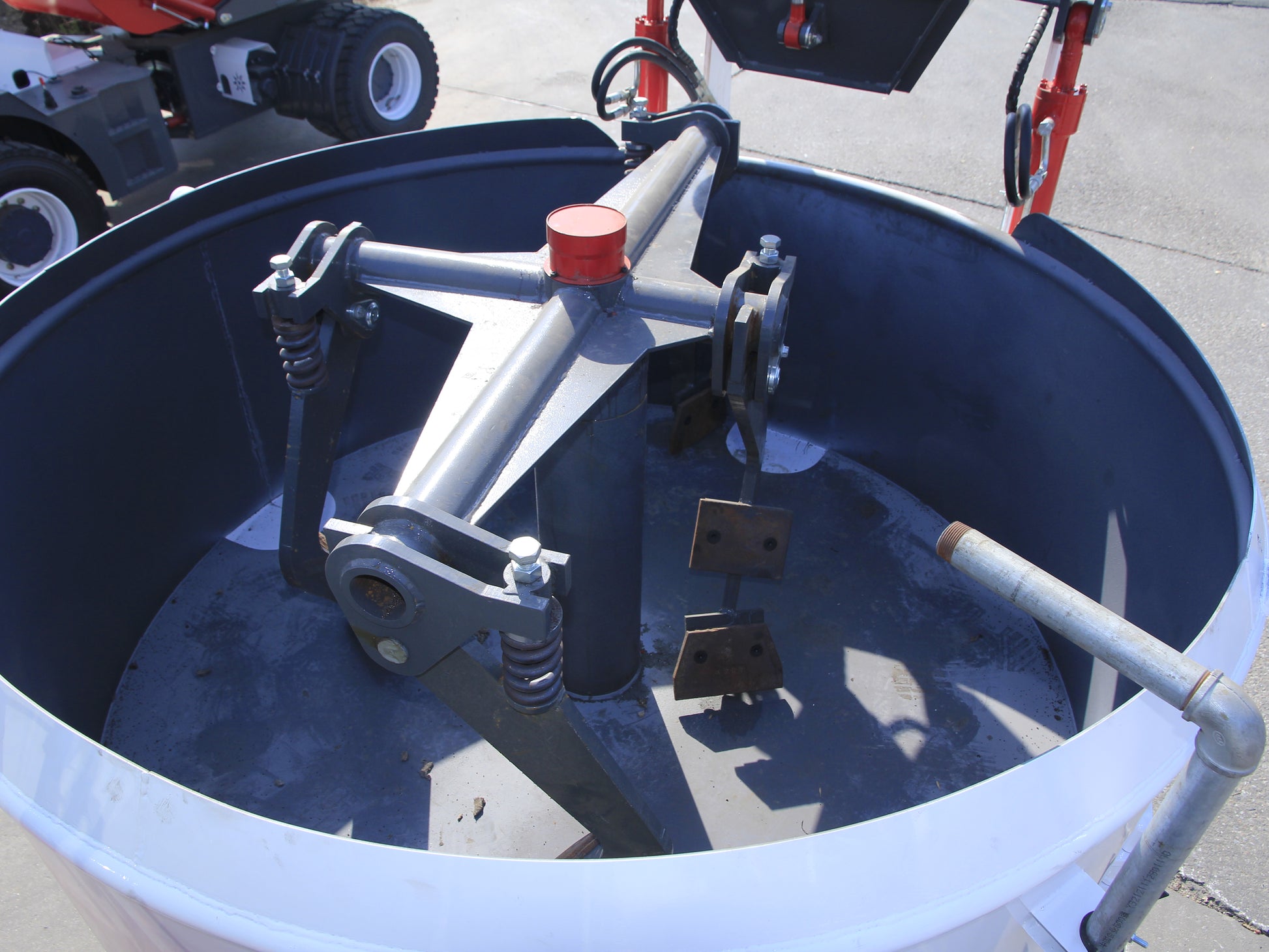

| Mixing tank diameter (mm) | 2100 |
| Mixing tank depth (mm) | 800 |
| Mixing tank capacity (m³) | 3 |

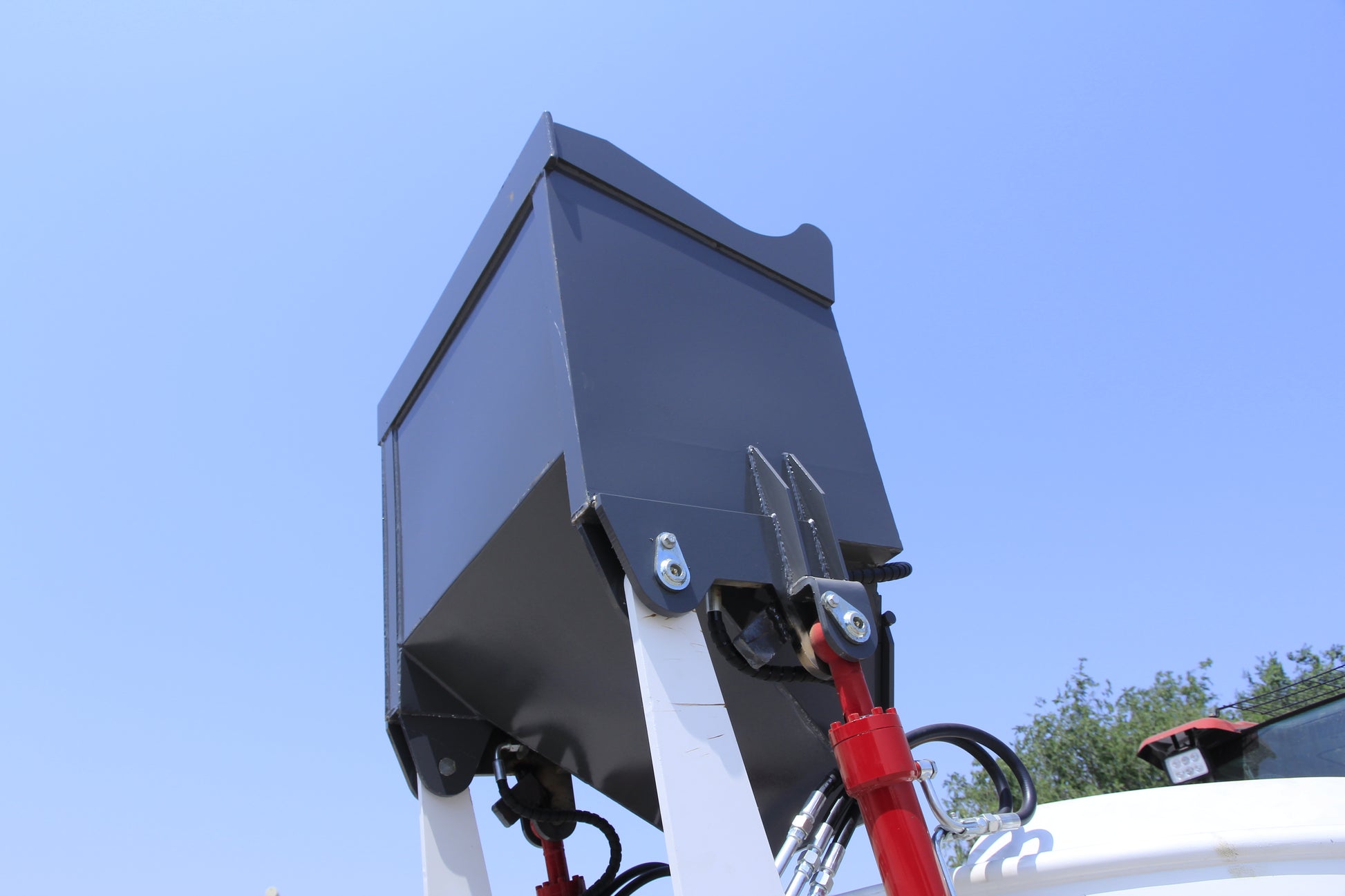

| Bucket capacity (m³) | 0.5 |
| Reduction ratio | 1:28 |
| Speed (Laps/minute) | ≥20 |
| Quantity of discharge port (pcs) | 2 |
| Distance from the ground at the discharge port (mm) | 900 |

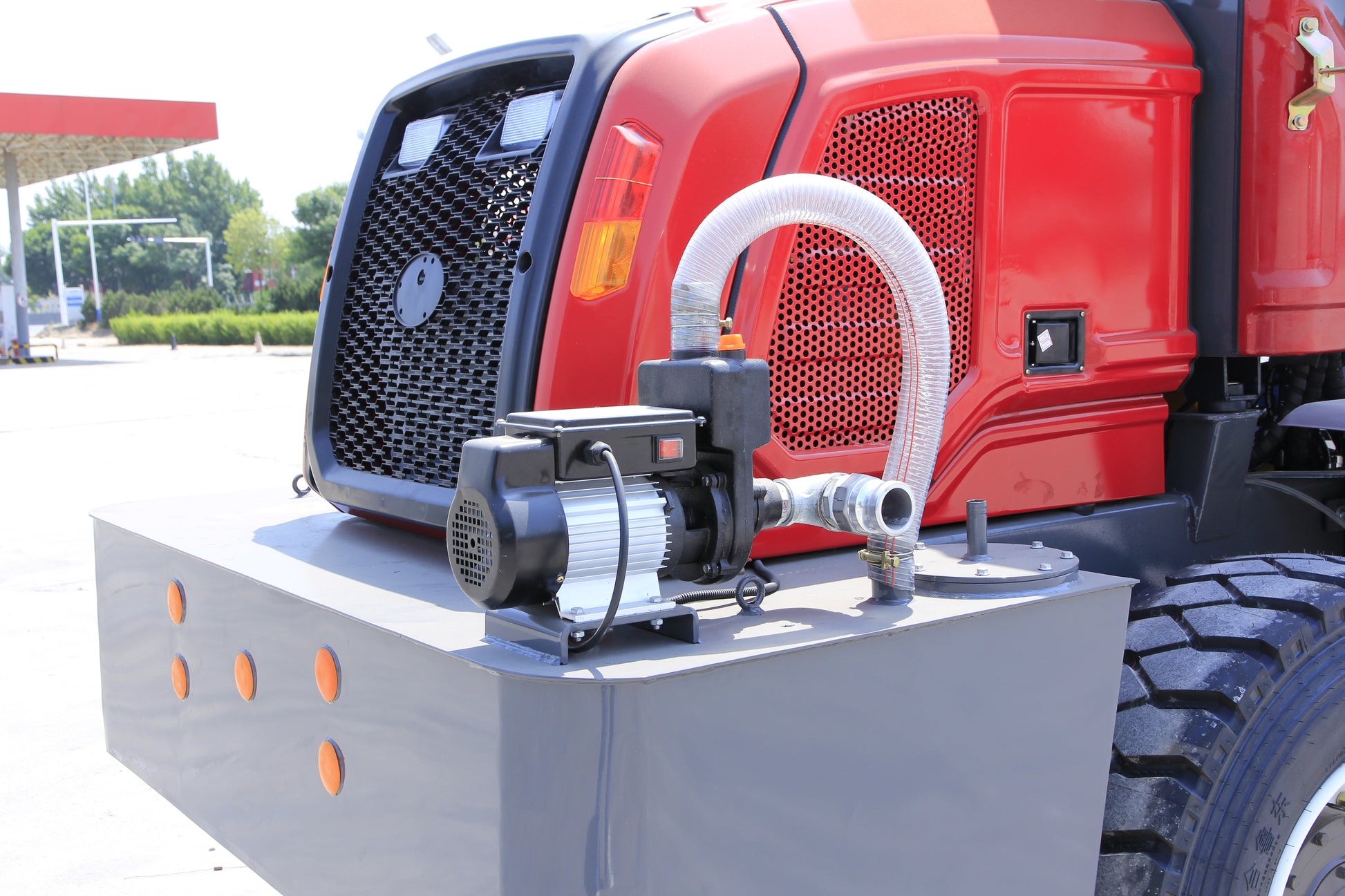

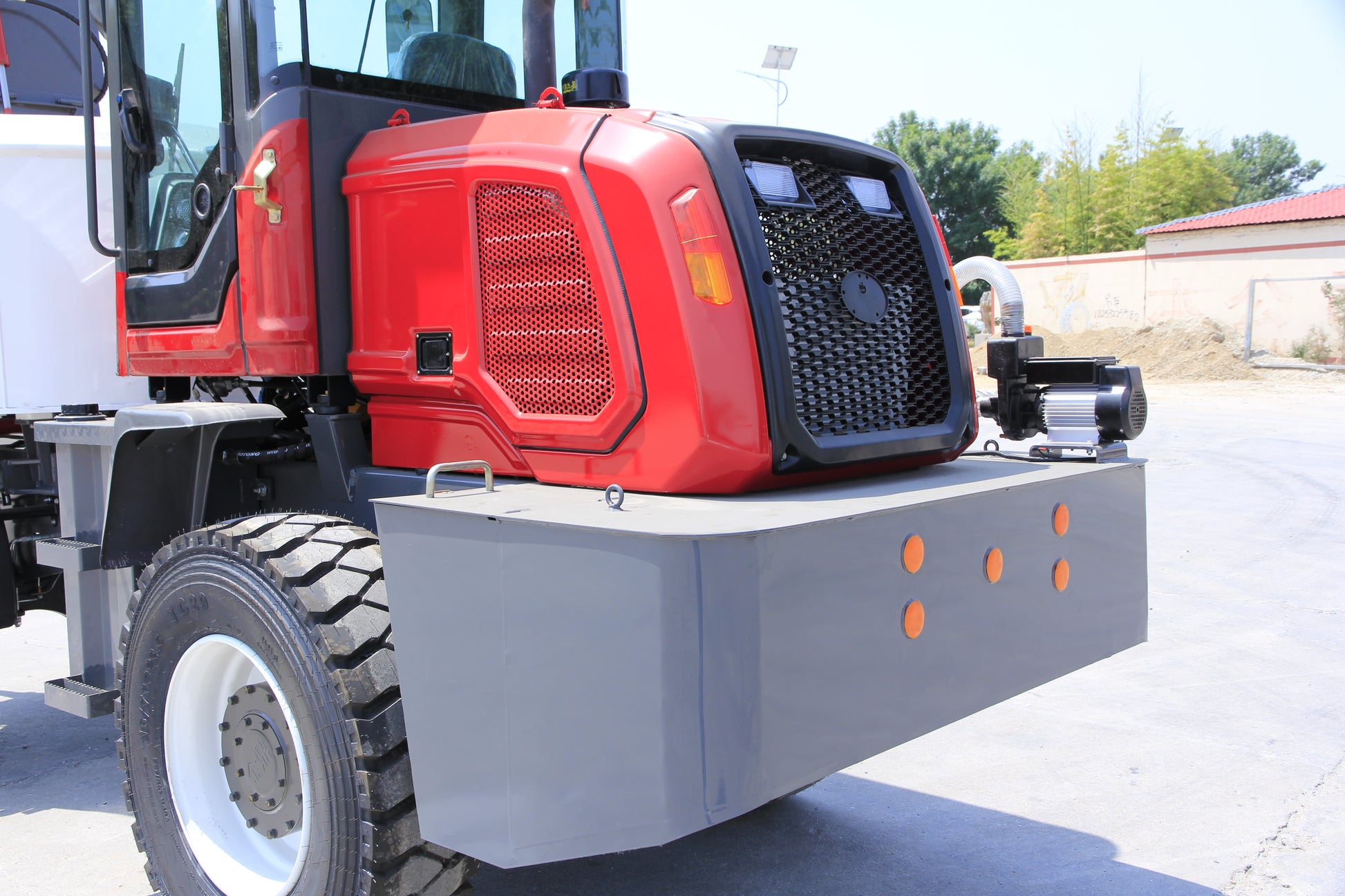

| Water tank capacity (L) | 500 |
| Mixing drive mode | 强制搅拌 Forced mixing |
| Mixing tank drive type | 液压驱动 Hydraulic drive |
| Minimum ground clearance (mm) | 350 |
The mixing tank of this equipment has a capacity of 3.0m³. The capacity of the mixing tank can be customized within the range of 1.5 to 3 m³ according to specific requirements.
